    150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness

    ASTM A182 ASME B16.5 150LBS forged stainless steel lap joint flange


    Vanforge holds a large stock of ANSI/ASME flanges in various types of stainless steels. Our program of stainless ANSI/ASME flanges covers the following materials:

    • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
    • Duplex stainless steel: UNS S31803 / EN 1.4462
    • Super-duplex stainless steel: UNS S32750 / EN 1.4410

    Standard specification for ANSI/ASME flanges from stock

    Flanges, forged, ASTM A182, F304/304L or F316/316L (dual marked and certified), ASME B16.5, annealed and fully machined, raised face, smooth finish (125-250 RMS / 3.2-6.3µM) to MSS-SP6, hardness to NACE MR0175 latest edition. IC checked to ASTM A262 E and PMI tested.

    Vanforge's ANSI/ASME flanges are certified according to EN 10204/3.1.

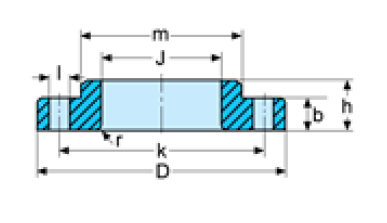

    Stainless steel lap joint flange, 150LBS

    Technical date:

    ASTM A182, ASME B16.5

    Flat face, smooth finish (125-250 RMS / 3.2-6.3 µm)

    Product code example:

    FFLJ-316L-2-150

    ● = Standard

    Pipe

    Flange

    Hub

    Drilling template

    Weight

    Standard

    Nom.size

    O.D.

    D

    J

    b

    h

    r

    m

    l

    k

    No. of holes

    kg/pce

    ASTM316L

    in.

    mm

    mm

    mm

    mm

    mm

    mm

    mm

    mm

    mm

    1/2
    3/4
    1
    1 ½
    21.3
    26.7
    33.4
    48.3
    88.9
    98.6
    108.0
    127.0
    22.9
    28.2
    35.1
    50.0
    11.2
    12.7
    14.2
    17.5
    15.7
    15.7
    17.5
    22.4
    3.0
    3.0
    3.0
    6.4
    30.2
    38.1
    49.3
    65.0
    15.7
    15.7
    15.7
    15.7
    60.5
    69.9
    79.2
    98.6
    4
    4
    4
    4
    0.390
    0.560
    0.780
    1.320



    2
    3
    4
    6
    60.3
    88.9
    114.3
    168.3
    152.4
    190.5
    228.6
    279.6
    62.5
    91.4
    116.8
    171.5
    19.1
    23.9
    23.9
    25.4
    25.4
    30.2
    33.3
    39.6
    7.9
    9.7
    11.2
    12.7
    77.7
    108.0
    134.9
    192.0
    19.1
    19.1
    19.1
    22.4
    120.7
    152.4
    190.5
    241.3
    4
    4
    8
    8
    2.060
    3.850
    5.300
    7.450




    Production facilities:
