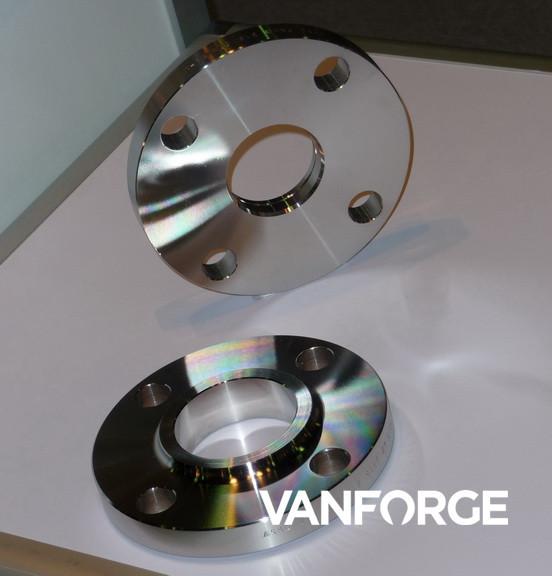

    DIN 2527 Forged Steel Flange Fully Machined Pressure Resistance Anti Corrosion

    Ask Lasest Price
    Brand Name : VANFORGE
    Certification : ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
    Payment Terms : L/C, T/T
    Supply Ability : 3000 pcs per month
    Delivery Time : 30 days
    Price : Negotiable
    • Product Details
    • Company Profile

    DIN 2527 Forged Steel Flange Fully Machined Pressure Resistance Anti Corrosion

    EN 1092-1 DIN 2527 ASME SA182 PN40 forged stainless steel blind flange


    Stainless steel blind flanges PN 10, 16 and 40 according to EN 1092-1 latest edition, type 05/A. Base material according to EN 10222-5/ASTM/ASME A/SA 182, fully machined.


    Vanforge's blind flanges according to EN are corrosion tested according to EN ISO 3651-2 latest edition and PMI checked. The stainless blind flanges are certified according to EN 10204/3.1.

    • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
    • Duplex stainless steel: UNS S31803 / EN 1.4462
    • Super-duplex stainless steel: UNS S32750 / EN 1.4410

    Blind flanges PN 40

    EN 1092-1, type 05/A (replaces DIN 2527/B)

    Material EN 1.4404 (ASTM 316L), fully machined. Prematerial according to EN 10222-5.

    Example of code used when ordering:

    Product code example:

    ● = Standard

    DN

    D

    b

    k

    Drilling template

    d2

    Weight

    ASTM

    mmmmmmHolesThreadmmkg/pce316L
    159516654M 12160.81
    2010518754M 12181.14
    2511518854M 12181.38
    32140181004M 16182.03
    40150181104M 16182.35
    50165201254M 16203.20
    65185221458M 16224.29
    80200241608M 16245.54
    100235241908M 20247.60
    125270262208M 242610.80
    150300282508M 242814.60

    Production facilities:
