    Forged Steel Pipe Fittings Butt Weld Short Radius Elbow 90 Degree

    Ask Lasest Price
    Brand Name : VANFORGE
    Certification : ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
    Payment Terms : L/C, T/T
    Supply Ability : 3000 pcs per month
    Delivery Time : 30 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Forged Steel Pipe Fittings Butt Weld Short Radius Elbow 90 Degree

    ASTM A403 ASME B16.28 ASME B16.9 stainless steel butt weld short radius elbow 90 degree


    Vanforge holds a large types of stainless and duplex steel butt welding fittings according to ANSI/ASME. Our program includes seamless butt welding fittings from 1/2 in. to 12 in. and welded butt welding fittings from 1/2 in. to 24 in. The schedule range covers 5S to Schedule 160.


    Materials and specifications

    The Vanforge program includes ASME butt welding fittings in the following materials:


    Austenitic stainless steels

    Stainless steel grades ASTM 304/304L and ASTM 316/316L (dual marked and certified) acc. to ASTM A / ASME SA403, IC acc. to ASTM A262E and PMI tested.


    Duplex and super-duplex stainless steels

    Duplex grade UNS S31803 (EN 1.4462) and super-duplex grade UNS S32750 (EN 1.4410) acc. to ASTM A815, G48A for UNS S32750 and PMI tested.


    All Vanforge's ASME butt welding fittings are acc. to ASME B16.9, annealed and quenched, bevelled ends acc. to ASME B16.25, hardness acc. to NACE MR0175.


    Vanforge ASME butt welding fittings are certified acc. to EN 10204/3.1.


    Elbows 90º short radius, butt weld fittings

    ASTM A403 ASME B16.28 / ASME B16.9


    Product code example:

    ●: FBBSR-316L-3-10S
    ▲: FBBSR-W316L-3-10S

    ● = made from seamless pipe
    ▲ = made from welded pipe or plate

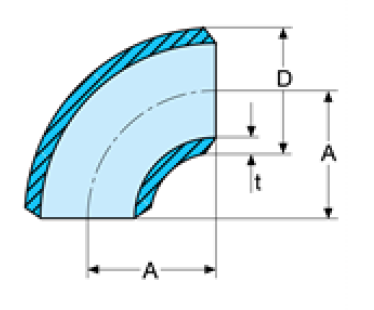

    Nominalpipe size

    Sch.*

    Dimensions in mm

    Weight

    ASTM

    ASTM

    in.

    D

    t

    A

    kg/pce

    304/304L

    316/316L

    110s
    40s
    80s
    33.4
    33.4
    33.4
    2.77
    3.38
    4.55
    25.4
    25.4
    25.4
    0.100
    0.120
    0.129
    ●/▲

    ●/▲

    40s
    80s
    42.4
    42.4
    3.56
    4.85
    31.8
    31.8
    0.200
    0.222


    10s
    40s
    80s
    48.3
    48.3
    48.3
    2.77
    3.68
    5.08
    38.1
    38.1
    38.1
    0.220
    0.290
    0.323
    ●/▲

    ●/▲

    210s
    40s
    80s
    60.3
    60.3
    60.3
    2.77
    3.91
    5.54
    50.8
    50.8
    50.8
    0.370
    0.510
    0.596
    ●/▲

    ●/▲

    10s
    40s
    80s
    73.0
    73.0
    73.0
    3.05
    5.16
    7.01
    63.5
    63.5
    63.5
    0.620
    1.020
    1.140


    ●/▲

    310s
    40s
    80s
    88.9
    88.9
    88.9
    3.05
    5.49
    7.62
    76.2
    76.2
    76.2
    0.980
    1.500
    1.850
    ●/▲

    ●/▲

    410s
    40s
    80s
    114.3
    114.3
    114.3
    3.05
    6.02
    8.56
    101.6
    101.6
    101.6
    1.720
    3.120
    3.560


    -
    ●/▲

    -
    510s
    40s
    141.3
    141.3
    3.40
    6.55
    127.0
    127.0
    2.78
    5.28

    ●/▲
    610s
    40s
    80s
    168.3
    168.3
    168.3
    3.40
    7.11
    10.97
    152.4
    152.4
    152.4
    4.150
    7.150
    11.790
    ●/▲

    -
    ●/▲
    ●/▲
    810s
    40s
    219.1
    219.1
    3.76
    8.18
    203.2
    203.2
    8.000
    17.050

    ●/▲

    ●/▲
    1010s
    40s
    273.1
    273.1
    4.19
    9.27
    254.0
    254.0
    12.400
    24.000


    1210s
    40s
    323.9
    323.9
    4.57
    9.53
    304.8
    304.8
    17.200
    38.100


    1410s
    STD
    355.6
    355.6
    4.78
    9.53
    355.6
    355.6
    23.590
    45.400

    -

    1610s
    STD
    406.4
    406.4
    4.78
    9.53
    406.4
    406.4
    30.840
    59.400
    -
    -

    -
    1810s457.24.19457.239.500-
    2010s508.04.78508.065.000-
    2410s609.66.35609.692.000-

    * Schedule


    Production procedures
