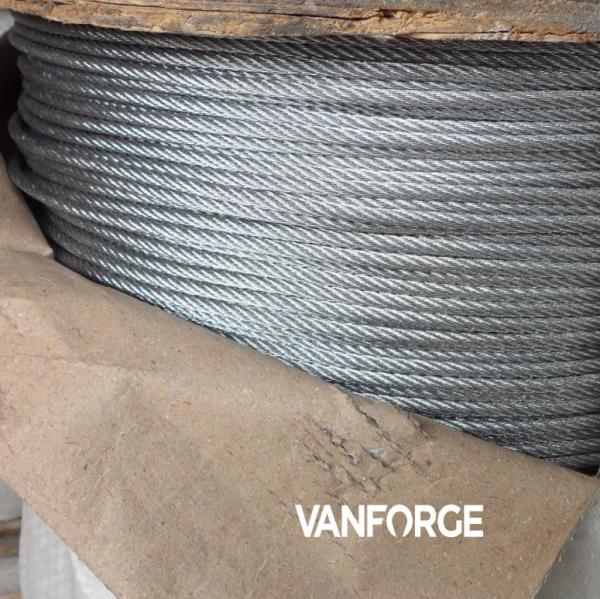

    1x19 construction AISI 316 marine grade stainless steel wire rope for offshore platform

    Ask Lasest Price
    Brand Name : VANFORGE
    Certification : ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
    Payment Terms : L/C, T/T
    Supply Ability : 1000 metric tons per month
    Delivery Time : 30 days
    Price : Negotiable
    • Product Details
    • Company Profile

    1x19 construction AISI 316 marine grade stainless steel wire rope for offshore platform

    VANFORGE provides various constructions stainless steel wire ropes in quality 304, 316 steels, which are the most corrosive type for marine environments and other places subjected to salt water spray.


    FC stands for fiber core, made of natural or synthetic fiber, which can provide excellent flexibility and resistance to contact pressure. The fiber core can store lubrication to reduce the friction between wire strands effectively. Meanwhile, the fiber core makes the rope lower deformable with low elastic rope elongation.


    IWRC is short for independent wire rope core, which strengths the rope, reduce tensile stress in individual wires as well as makes the ropes more resistant to crushing. At the same time, IWRC wire ropes have the maximum heat resistance than others FC or WSC ropes.


    Stainless Steel Wire Roes for Marine & General Applications


    Stainless steel wire ropes have a higher corrosion resistance to salt water than galvanized wire ropes, so they are the best choice of marine applications. Meanwhile, the bright appearance of galvanized wire ropes will dull over time, but stainless steel wire rope will maintain its bright and modern appearance for years. Therefor they are generally used in decoration for modern display and architectural purposes, such as railings, architectural cables, cable balustrades, handrails, etc.


    Normally, stainless steel wire rope is made of 304, 316. And here is a simple comparison of these materials:


    The 304 material, as the most common type, is magnetic with excellent corrosion resistance and strength compared with galvanized steel wire ropes. But it still will corrode to some extent over year so it is not suitable for marine and food applications.


    The 316 materials is the most corrosive resistant type and highly used in high corrosion environments and places with high salt spray. But the 316 material is about 10% less strength than 304 stainless steel.


    Construction:

    Four main constructions of stainless steel wire ropes - 1x19, 7x7, 7x19, 6x36 FC/IWRC are available as shown below:


    1x19 stainless steel wire rope


    Features:

    Low stretch.

    Excellent breaking load qualities.

    High decorative appearance.


    Application:

    Marine industry such as rigging, sewage treatment work and mast stay.

    Architectural applications including balustrades, guardrail and decking, etc.


    Technic data

    ModelRope diameter (mm)Tensile strength (MPa)Min. breaking load (kN)Weight (kg/m)
    SSWR-119-10.5415700.240.001
    SSWR-119-2115700.820.005
    SSWR-119-31.215701.280.007
    SSWR-119-41.515701.860.011
    SSWR-119-51.815702.670.016
    SSWR-119-6215703.300.02
    SSWR-119-72.515705.150.031
    SSWR-119-8315707.420.045
    SSWR-119-94157013.20.08
    SSWR-119-105157020.590.124
    SSWR-119-116157029.680.178
    SSWR-119-127157040.40.243
    SSWR-119-138157051.990.317
    SSWR-119-1410150082.40.495
    SSWR-119-15121450118.650.713
    SSWR-119-16141340161.500.927
    SSWR-119-17161340210.931.27
    SSWR-119-18191260297.451.78
