    SS Machined Forged Steel Flange , Stainless Steel Welding Neck Flange For Chemical

    ASTM A182 ASME B16.5 600LBS forged stainless steel weld neck flange


    Vanforge holds a large stock of ANSI/ASME flanges in various types of stainless steels. Our program of stainless ANSI/ASME flanges covers the following materials:

    • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
    • Duplex stainless steel: UNS S31803 / EN 1.4462
    • Super-duplex stainless steel: UNS S32750 / EN 1.4410

    Standard specification for ANSI/ASME flanges from stock

    Flanges, forged, ASTM A182, F304/304L or F316/316L (dual marked and certified), ASME B16.5, annealed and fully machined, raised face, smooth finish (125-250 RMS / 3.2-6.3µM) to MSS-SP6, hardness to NACE MR0175 latest edition. IC checked to ASTM A262 E and PMI tested.

    Vanforge's ANSI/ASME flanges are certified according to EN 10204/3.1.

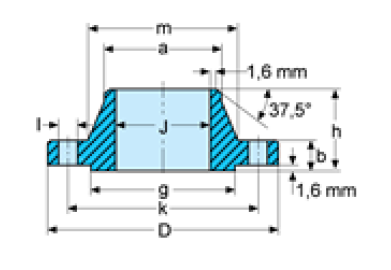

    Stainless steel weld neck flange, 600LBS

    Technical date:

    ASTM A182, ASME B16.5
    Sch 40S / 80S

    Raised face, smooth finish (125-250 RMS / 3.2-6.3 µm)

    ● = Sch 40S
    ▲ = Sch 80S

    Product code examples:

    ●: FFWN-F51-2-600-40S
    ▲: FFWN-316L-4-600-80S

    Pipe

    Flange

    Hub

    Raised face

    Drilling template

    Weight

    Standard

    Nom.
    size

    O.D.

    D

    J

    b

    h

    a

    m

    g

    l

    k

    No. of
    holes

    kg/pce

    ASTM
    304L

    ASTM
    316L

    in.

    mm

    mm

    mm

    mm

    mm

    mm

    mm

    mm

    mm

    mm

    1/2
    3/4
    1
    1 ¼
    21.3
    26.7
    33.4
    42.2
    95.3
    117.3
    124
    133.4
    13.8
    18.9
    24.3
    32.7
    14.2
    15.7
    17.5
    20.6
    52.3
    57.2
    62
    66.5
    21.3
    26.7
    33.4
    42.2
    38.1
    47.8
    53.8
    63.5
    35.1
    42.9
    50.8
    63.5
    15.7
    19.1
    19.1
    19.1
    66.5
    82.6
    88.9
    98.6
    4
    4
    4
    4
    0.870
    1.450
    1.760
    2.490
    ●/▲
    ●/▲
    ●/▲
    ●/▲

    ●/▲
    ●/▲
    ●/▲
    1 ½
    2
    2 ½
    3
    48.3
    60.3
    73
    88.9
    155.4
    165.1
    190.5
    209.6
    38.1
    49.2
    59
    73.6
    22.4
    25.4
    28.4
    31.8
    69.9
    73.2
    79.2
    82.6
    48.3
    60.3
    73
    88.9
    69.9
    84.1
    100.1
    117.3
    73.2
    91.9
    104.6
    127
    22.4
    19.1
    22.4
    22.4
    114.3
    127
    149.4
    168.1
    4
    8
    8
    8
    3.490
    4.360
    6.430
    8.530
    ●/▲
    ●/▲

    ●/▲
    ●/▲
    ●/▲

    ●/▲
    4
    6
    8
    114.3
    168.3
    219.1
    273.1
    355.6
    419.1
    97.2
    146.4
    193.8
    38.1
    47.8
    55.6
    101.6
    117.3
    133.35
    114.3
    168.3
    219.2
    152.4
    222.3
    273.1
    157.2
    215.9
    269.9
    25.4
    28.4
    31.7
    215.9
    292.1
    349.2
    8
    12
    12
    17.400
    34.900
    53.900
    ●/▲
    ●/▲
    -
    ●/▲
    ●/▲

    Production facilities:
