Description

The high-strength structural steel at 1100 MPa

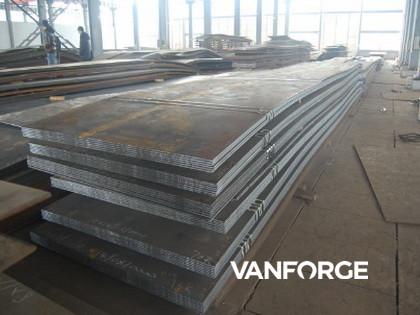

S1100MC steel is a hot-rolled structural steel made for cold forming, with a minimum yield strength of 1100 MPa for stronger and lighter structures.

These cut-to-length sheets feature excellent thickness accuracy and surface quality in relation to strength level, providing an outstanding finish to the final products.

Typical applications include a wide range of parts and components such as demanding load-bearing structures.

Dimension Range

S1100MC steel is available as cut to length sheets in thicknesses of 3.00 to 8.00 mm, widths up to 1700mm and lengths up to 16 meters.

Mechanical Properties

The mechanical properties are tested in the longitudinal direction.

(1) If ReH is not applicable then Rp 0,2 is used.

(2) For both longitudinal and transverse direction.

Impact Properties

Impact testing according to EN ISO 148-1 is performed on thicknesses ≥ 6mm.

The specified minimum value corresponds to a full-size specimen.

Chemical Composition, %

The steel is grain refined.

In addition Nb, V, Cr, Mo, B and Ti may be used.

Thickness

VANFORGE offers considerably narrower thickness tolerances compared to EN 10051.

Length and Width

Width and length tolerances according to EN 10051.

Shape

Tolerances according to EN 10051. Narrower tolerances are available on request.

Flatness

Tolerances according to EN 10051.

Surface Properties

According to EN 10163-2 Class A, Subclass 3.

Delivery Conditions

Thermomechanically Rolled. S1100MC steel is available in as rolled surface condition.

Fabrication and Other Recommendations

S1100MC steel has good welding, cold forming and cutting performance.

S1100MC steel is not suited for applications requiring hot working or heat treatments at temperatures above 200°C since the material then may lose its guaranteed properties.

Specification

Plate thickness: 4-100mm

Width: 500mm – 4700mm

Length: On request

Production process

产品标题

Suzhou Vanforge Metals Co., Ltd. was set up in April 1999 with a registered capital of 230 million Yuan in Zhangjiagang Bonded Area in Jiangsu Province of China. It has developed to be an important R&D and manufacture enterprise of high performance stainless steels and nickel alloys.

Vanforge is a high-tech enterprise with 70 national patents, it has its own Special Alloy Research Center, academician workstation and post doctorate innovation practice base. Vanforge has been certificated the national laboratory accreditation of ISO/IEC 17025, and ISO9001, ISO14001, OHSAS18001, API Q1, IATF16949, GB/T23331, TUV, CCS, DNV, LR, ABS.

Vanforge has the international advanced special smelting capacity, including the German ALD 6t vacuum induction furnace, 6t consumable electrode vacuum furnace, 18t drawing-ingot protective atmosphere electroslag furnace and 1t vacuum induction furnace, 3t electroslag furnace, 18t drawing-hollow ingot electroslag furnace, and 2# Purification Furnace/1# Purification Furnace/LF/AOD/VOD refining production line, 25MN/8MN fast forging machine, 450/320 rolling mill, etc.

The current annual production capacity of Vanforge is 120,000 tons, and the main products are high-grade special alloy materials, including high temperature alloy, corrosion resistant alloy, precision alloy, ultra high strength steel, special stainless steel, high-grade tool and mould steel, steam turbine blades steel, gas turbine steel, ultra-supercritical materials, etc., which are widely used in aviation, aerospace, ship, petrochemical, nuclear power, electronics, steam turbine, high-speed rail, machinery manufacturing, and other fields; besides, we can organize the research and development and production of new materials according to customer demand for new materials. Vanforge has now become a qualified supplier of domestic high-end equipment manufacturing enterprises, such as CASIC, CGN, CRRC, CFHI, Wujin Stainless, Zhejiang Jiuli Hi-Tech Metals Co., Ltd., Xinxing Ductile Iron Pipe Co., Ltd., etc.

We always adhere to the concept of quality first, integrity based, scientific and technological innovation, making progress, and wholeheartedly serving customer and devote ourselves to becoming the well-known supplier of key basic materials of world’s high-end equipment manufacturing industry.

We supply following products in the forms of wires, bars, plates

(Super) austenitic stainless steels

(Super) duplex stainless steels

(Supper) Ferritic stainless steels

Precipitation hardening stainless steels

Incoloy alloys

Inconel alloys

Monel alloys

Hastelloy alloys

As well as following steel products

Gear steels

Bearing steels

Spring steels

Drilling tool steels

Free-cutting steels

Anchor steels, mooring chain steels

Mining chain steels

Die steels, Mold steels, tool steels

Structural steels

Antiwear steels

Offshore structure steels

Petroleum storage tank steels
